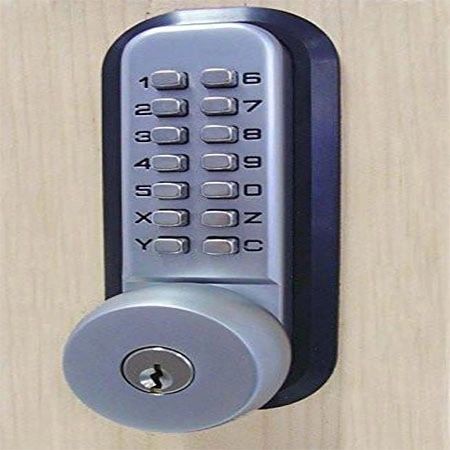

This mechanical keyless deadbolt lock is fully mechanical, so it requires no batteries to operate. It unlocks by code, with no keys required, and it is all-weather sealed and impact resistant for use outside or inside, including in severe temperatures. The finish is satin nickel. An automatic re-locking system secures the door after entry.
The 13-digit alphanumeric keypad plus a clear key accepts a programmable unlock code of up to 10 digits. Two keys are included for a standard keyed entry option. The lock has an easy-to-operate door knob with an interior lever handle. It replaces the existing deadbolt on most doors and includes all installation hardware, two keys, and instructions. One year warranty.
Applications
- Exterior and interior doors where a battery-free keypad deadbolt is preferred
- Gates, shops, and outbuildings that see weather and temperature swings
- Replacing a standard deadbolt on a door that already has a 2-1/8″ cutout
Specifications
| Type | Mechanical keyless deadbolt; no batteries |
|---|---|
| Finish | Satin nickel |
| Operation | All-weather, sealed and impact resistant; functions in severe temperature |
| Entry | Programmable unlock code up to 10 digits, or keyed entry (2 keys included) |
| Keypad | 13-digit alphanumeric keypad + clear key |
| Relocking | Automatic re-locking system |
| Handles | Door knob with interior lever handle |
| Door thickness | Up to 1-3/4″ maximum |
| Installation | Standard 2-1/8″ diameter cutout, plus an additional 10mm diameter hole for the anchor post |
| Dimensions | 1.6″ x 5.5″ x 2.2″ |
| Included | Lock, all installation hardware, 2 keys, and instructions |
| Warranty | One year |
Usage limits
- Maximum door thickness is 1-3/4″.
- Installation requires a door with a standard 2-1/8″ cutout and an additional 10mm hole drilled for the anchor post.
- This is a mechanical lock. It does not need batteries, and it will not run a smart-home or Wi-Fi connection.
FAQ
Does this lock need batteries? No. It is fully mechanical and battery-free.
Will it work outside in bad weather? Yes. It is all-weather sealed and impact resistant, and it is made to function in severe temperatures, inside or outside.
What door thickness does it fit? Doors up to 1-3/4″ thick. The door needs a standard 2-1/8″ cutout and an additional 10mm diameter hole for the anchor post.
Can I still use a key? Yes. Two keys are included for a standard keyed entry option, in addition to the programmable code.
How long can the unlock code be? You can program an unlock code of up to 10 digits on the 13-digit alphanumeric keypad. A clear key is included.
